11614

7PC 1/2″Fx3/4″M 1500 N·m Torque Multiplier Set

11614

7PC 1/2″Fx3/4″M 1500 N·m Torque Multiplier Set

Repair Level1/2"Fx3/4"M1:6.5231 N·m (170 lbf·ft)1500 N·m (1100 lbf·ft)1000N·m-2500N·m

[Sassy_Social_Share]

Specifications

Additional information

Model No
Type (Torque Multiplier)
Torque Ratio
Gear Ratio
Input Drive
Output Drive
Max.Input Torque
Max. Output Torque
Max. Output Torque (Range)
Input Drive * Output Drive
11614

Repair Level

1:6.5

1:9

1/2"Dr. Female

3/4"Dr. Male

231 N·m (170 lbf·ft)

1500 N·m (1100 lbf·ft)

1000N·m-2500N·m

1/2"Fx3/4"M

Related Products

    Model No. Model Name
    11712 7PC 1/2″F x 1″M 2500 N·m Torque Multiplier Set
    11714 7PC 3/4″F x 1″M 2500 N·m Torque Multiplier Set
    11711 7PC 1/2″F x 1″M 2000 N·m Torque Multiplier Set
⚠︎ Warning:Do not use with impact wrench

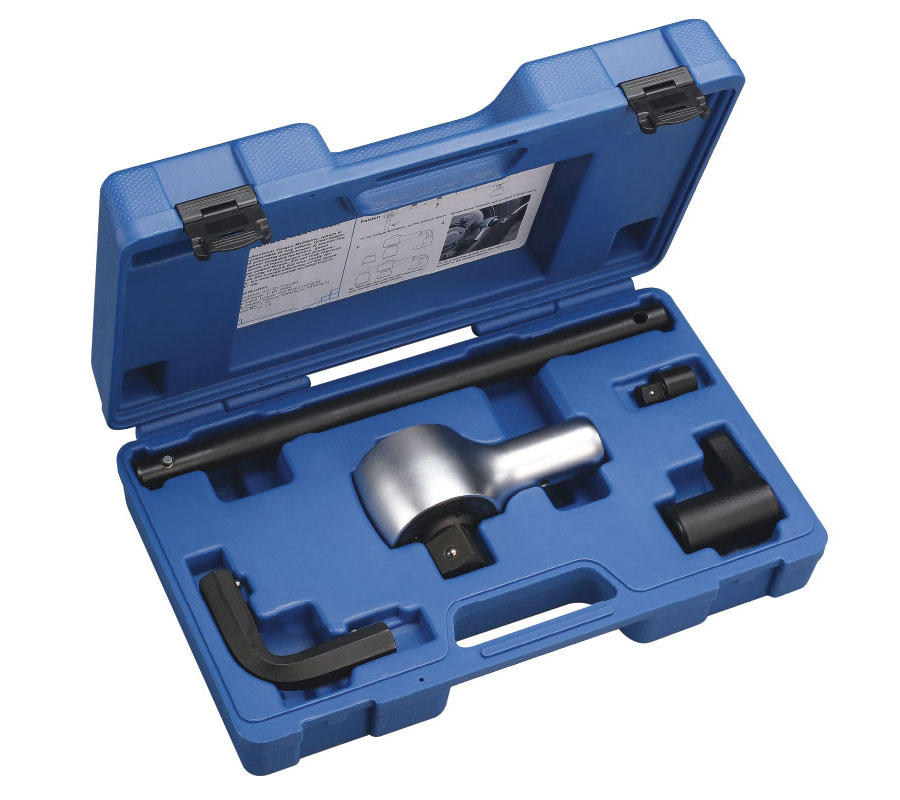

Overview
  • Torque Multiplier:1/2″ x 3/4″ 1500 N·m      x1PC
  • 90∘Reaction Bar                                                 x1PC
  • 90∘Reaction Base                                               x1PC
  • Straight Reaction Bar                                        x1PC

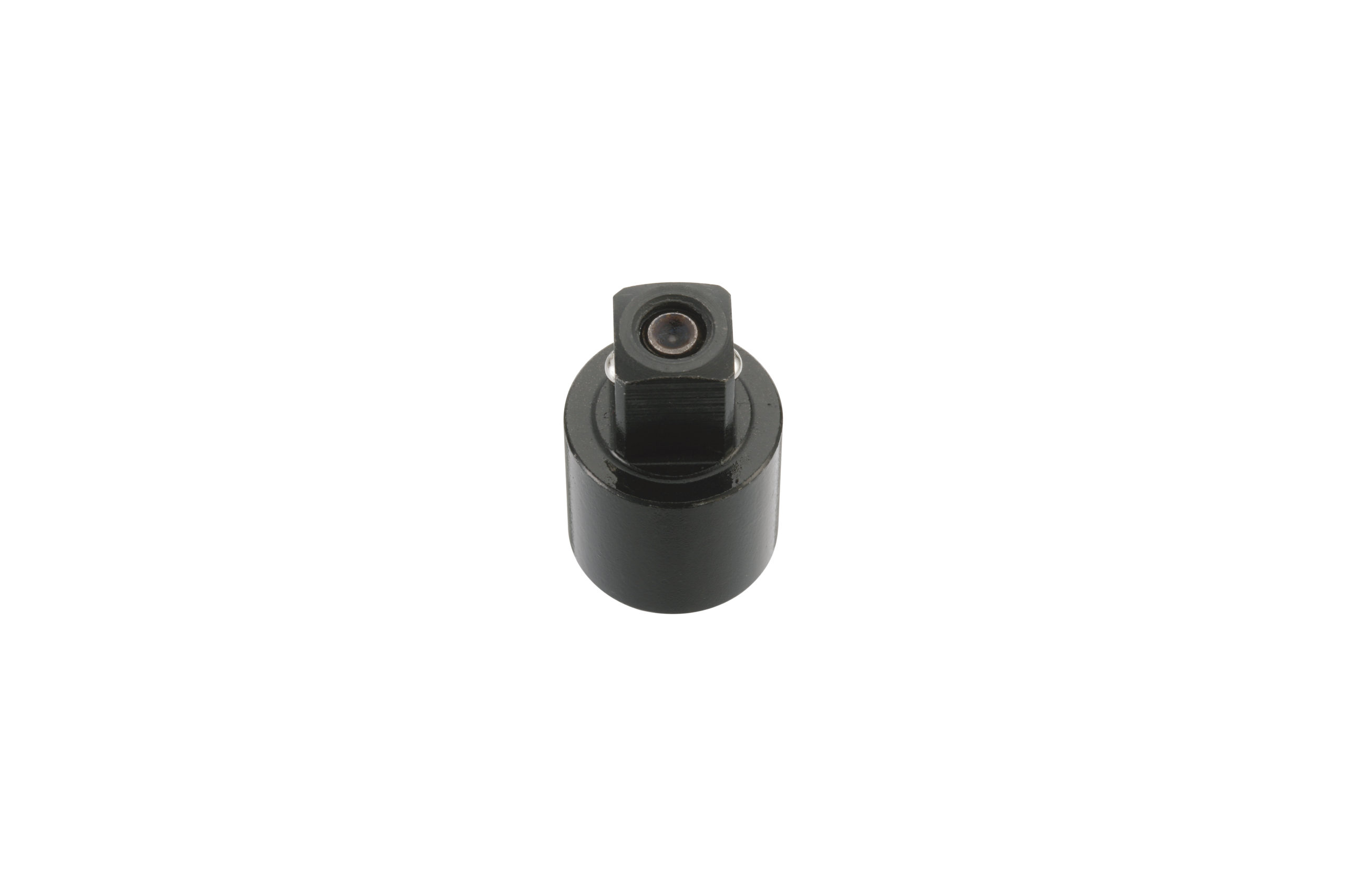

  • Break-away Safety Adapter                              x2PC
  • L Key                                                                      x1PC
Operation Manual
