35041

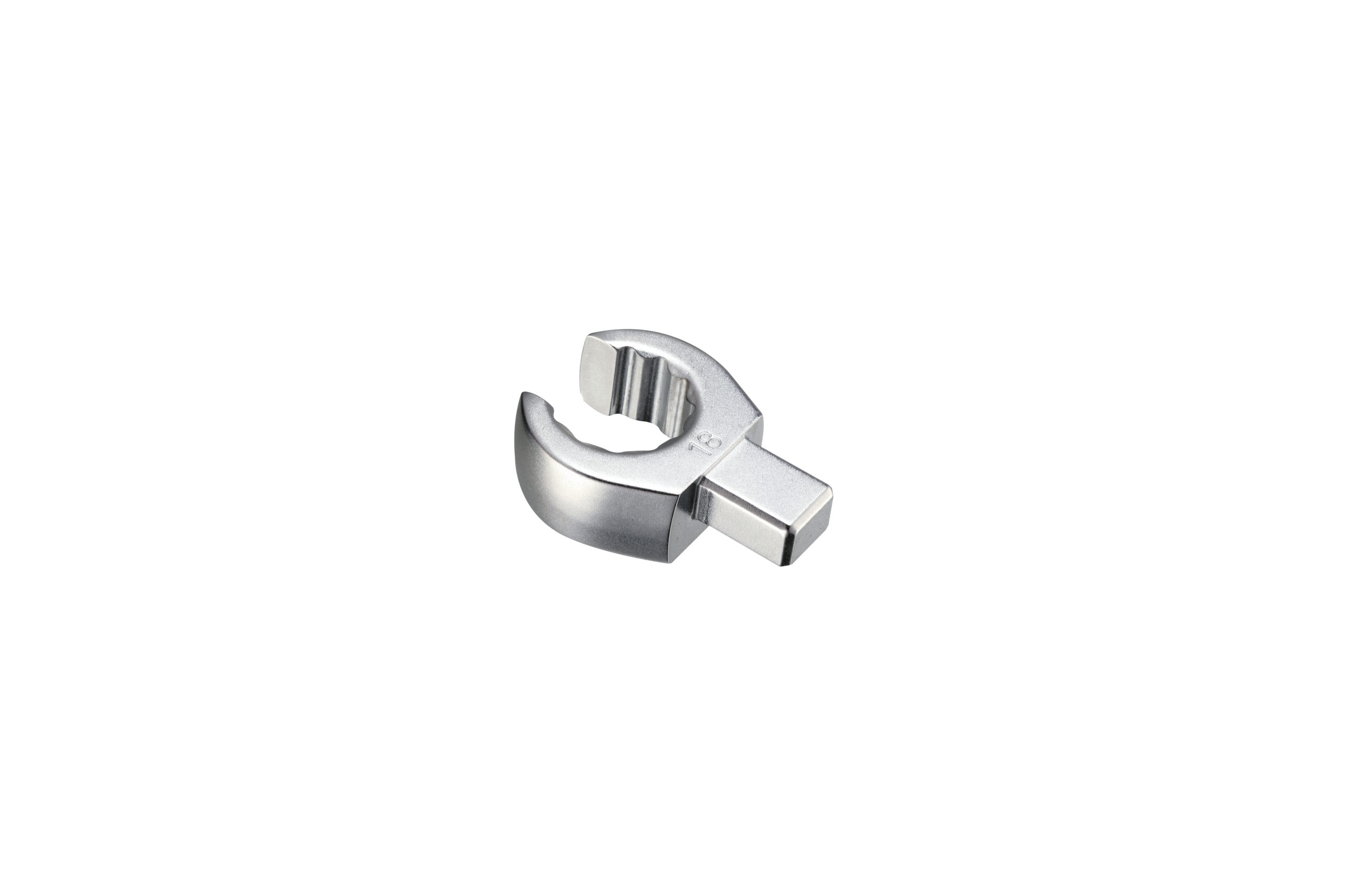

Open Ring Insert 9X12mm-11mm
9x12Open RingMetric11mm
[Sassy_Social_Share]
Specifications
Additional information
|
|
Related Products
| Model No. | Model Name |
|---|---|
| 35049 | Open Ring Insert 9X12mm-21mm |
| 35050 | Open Ring Insert 9X12mm-22mm |
| 35048 | Open Ring Insert 9X12mm-19mm |
| 35046 | Open Ring Insert 9X12mm-17mm |
| 35047 | Open Ring Insert 9X12mm-18mm |
| 35045 | Open Ring Insert 9X12mm-16mm |
| 35044 | Open Ring Insert 9X12mm-14mm |
| 35043 | Open Ring Insert 9X12mm-13mm |
| 35042 | Open Ring Insert 9X12mm-12mm |
| 35040 | Open Ring Insert 9X12mm-10mm |

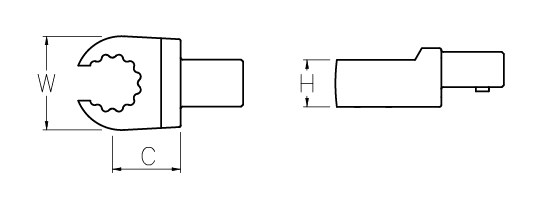

| Item NO. | Width (mm) | Height (mm) | C(mm) | Weight (g) | Fitting Size (mm) |
| 35040-10mm | 21.2 | 12 | 17.5 | 57 | 9×12 |
| 35041-11mm | 22.6 | 12 | 17.5 | 55 | 9×12 |
| 35042-12mm | 24.1 | 12 | 17.5 | 59 | 9×12 |
| 35043-13mm | 25.2 | 12 | 17.5 | 55 | 9×12 |
| 35044-14mm | 27.3 | 13 | 17.5 | 60 | 9×12 |
| 35045-16mm | 30.1 | 13 | 17.5 | 65 | 9×12 |
| 35046-17mm | 31.6 | 13 | 17.5 | 64 | 9×12 |
| 35047-18mm | 33.3 | 15 | 17.5 | 74 | 9×12 |
| 35048-19mm | 34.6 | 15 | 17.5 | 80 | 9×12 |
| 35049-21mm | 37.7 | 15 | 17.5 | 88 | 9×12 |
| 35050-22mm | 39.3 | 15 | 17.5 | 92 | 9×12 |
