35120

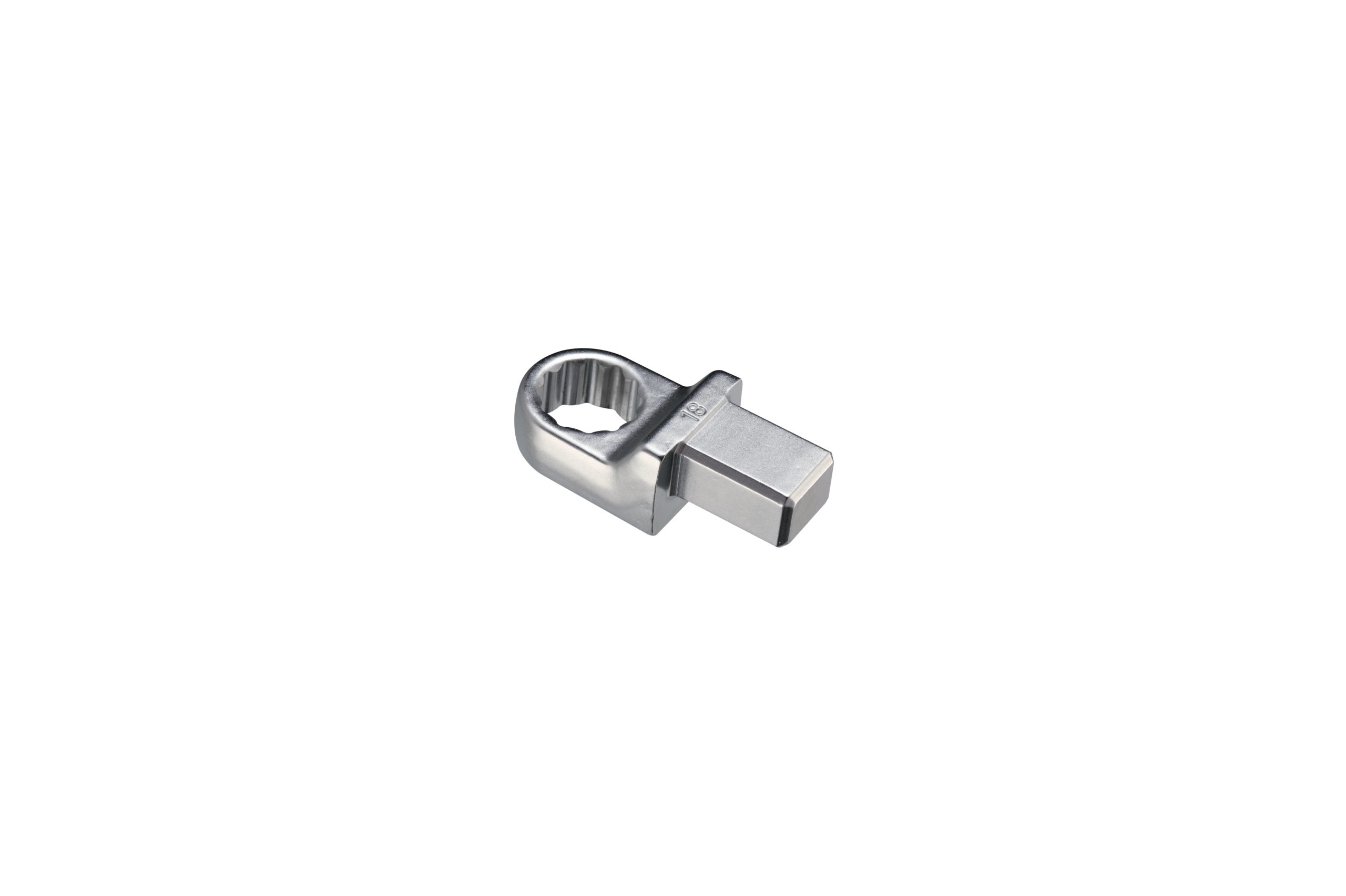

Ring End Insert 14X18mm-13mm
14x18Ring EndMetric13mm
[Sassy_Social_Share]
Specifications
Additional information
|
|
Related Products
| Model No. | Model Name |
|---|---|
| 35135 | Ring End Insert 14X18mm-41mm |
| 35134 | Ring End Insert 14X18mm-36mm |
| 35132 | Ring End Insert 14X18mm-32mm |
| 35133 | Ring End Insert 14X18mm-34mm |
| 35131 | Ring End Insert 14X18mm-30mm |
| 35129 | Ring End Insert 14X18mm-24mm |
| 35130 | Ring End Insert 14X18mm-27mm |
| 35128 | Ring End Insert 14X18mm-22mm |
| 35126 | Ring End Insert 14X18mm-19mm |
| 35127 | Ring End Insert 14X18mm-21mm |
| 35125 | Ring End Insert 14X18mm-18mm |
| 35124 | Ring End Insert 14X18mm-17mm |
| Item NO. | Width (mm) | Height (mm) | C (mm) | Weight (g) | Fitting Size (mm) |
| 35120-13mm | 21 | 12 | 25 | 130 | 14×18 |
| 35121-14mm | 23 | 12 | 25 | 123 | 14×18 |
| 35122-15mm | 26 | 12 | 25 | 128 | 14×18 |
| 35123-16mm | 26 | 12 | 25 | 133 | 14×18 |
| 35124-17mm | 27.5 | 12.5 | 25 | 135 | 14×18 |
| 35125-18mm | 29.5 | 12.5 | 25 | 134 | 14×18 |
| 35126-19mm | 31 | 12.5 | 25 | 138 | 14×18 |
| 35127-21mm | 33 | 15 | 25 | 144 | 14×18 |
| 35128-22mm | 35 | 15 | 25 | 145 | 14×18 |
| 35129-24mm | 38 | 15 | 25 | 153 | 14×18 |
| 35130-27mm | 42 | 17.5 | 31 | 162 | 14×18 |
| 35131-30mm | 45.1 | 17.5 | 31 | 182 | 14×18 |
| 35132-32mm | 48 | 17.5 | 31 | 181 | 14×18 |
| 35133-34mm | 51 | 19 | 31 | 210 | 14×18 |
| 35134-36mm | 53 | 19 | 31 | 203 | 14×18 |
| 35135-41mm | 59.3 | 19 | 31 | 240 | 14×18 |
